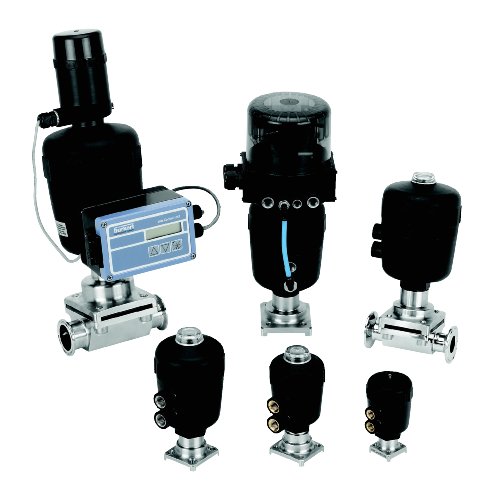

The standard 2 Way Valves are available in sizes ¼" to 6" and can be supplied in any number of
configurations with options involving body type, diaphragm type, end connections and surface finish.
Whether combined with our manual bonnets featuring smooth operating high temperature plastic
handwheels or our pneumatic actuators, Aquasyn's innovative design capabilities set us apart.
|
Technical Data
- BPE Compliant machined bar stock bodies with controlled Sulfur
(0.005-0.010%) Ferrite < 0.5%
- Integral valve body sealing ridge prevents excessive entrapment of process media
- Sizes from 1/4" to 6" provide process application flexibility
- Exterior body surfaces radiused and sloped promote cleanability by wash-down or COP methods
- Fully traceable bodies insure ease of validation/documentation
- Drain angle marks etched on end connections insure self-draining alignment
- Surface finishes available from 25Ra to 5Ra, mechanical and electropolished
- Exotic materials including Hastelloy 1 AL6XN 2 and Titanium available upon request
- Hygienic clamp, butt weld, orbital weld and special end connections available
|
|
|
