The advanced design of our check valves is ideal for applications involving fluids and steam.
The unique design allows reversing the flow direction, thus significantly reducing costs resulting

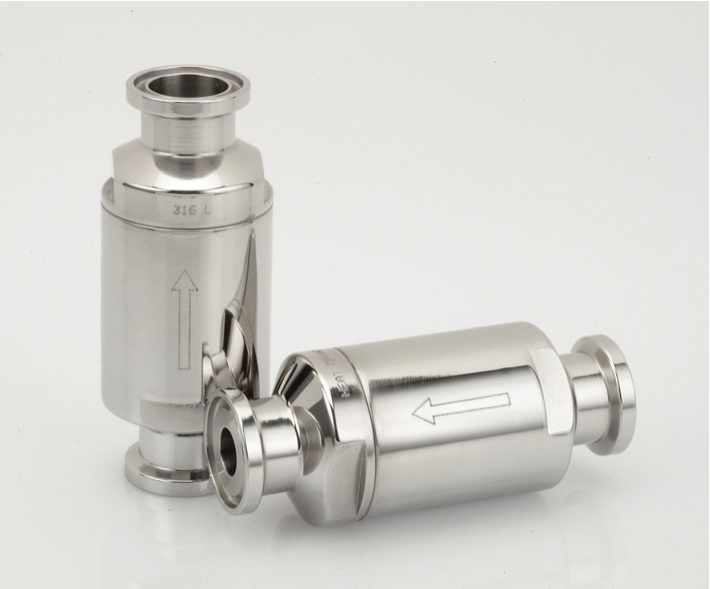

from incorrect installation. The sanitary spring operated non return valve is Manufactured from
solid bar stainless steel AISI 316L in 2 pieces assembled together by bolts. The guide seat plate
is machined in the top body parts and the sealing is guaranteed by 1 silicone o-ring (other
Elastomers are available upon request). Can be mounted in horizontal or vertical position
(and is fully drainable in vertical position). |
Technical Data
Size range: 1/2" to 6"
Connections: Tri Clamp.
Max operating data:
Maximum working pressurere: up to 20 bar
Opening Pressure: 0,3 barg
Temperature: up to 150°C
Surface finish: internal Ra ≤0.6µm external mirror polished
|
|
|
