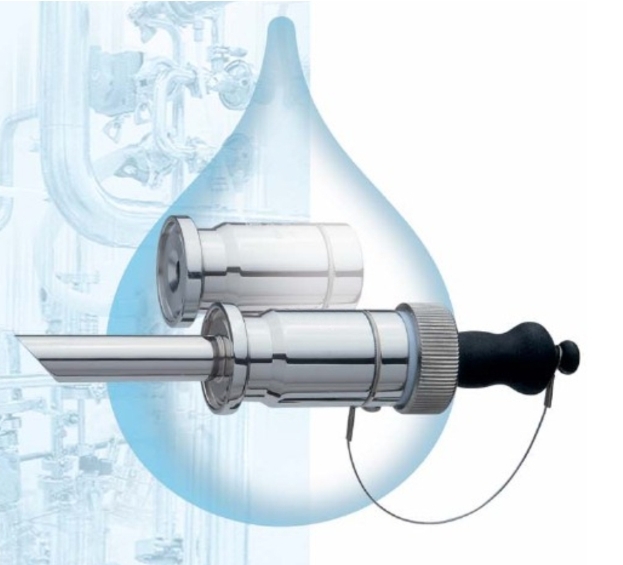

This valve has been designed for sterile sampling from any type of vessel; the valve is
fully Autoclavable and the special configuration assures effective sample to be taken from
the middle of a line enabling a representative sample of the product Extremely economical
and very easy to use, can be installed onto distribution loops or tanks. Machined entirely
from a solid round barstock in Stainless Steel AISI 316L available with clamp or screwed
connections. Once the valve is installed; the sealing plug shuts flush with the inlet port
connection that guaranties no deadleg |
Technical Data
Process connections:

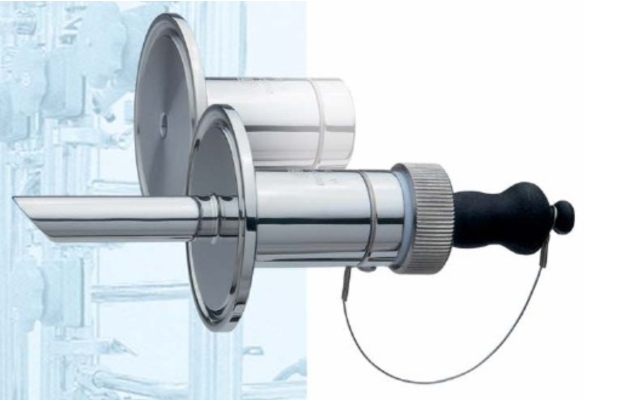

Clamp 3/4" & 1"

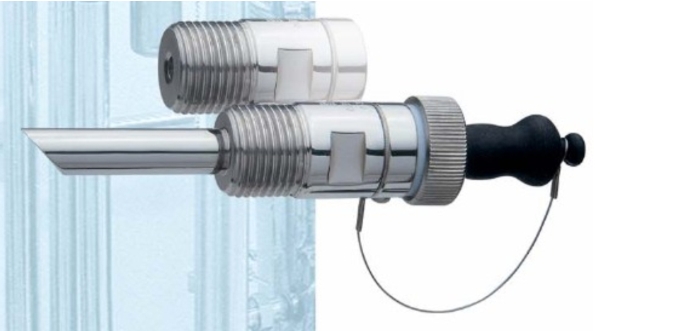

Optional: gas male thread 1/2" & 3/8" plus welding
Sampling Port:
Syringe ( Lube-slip ), Tule & STAUBLI®
Maximal operating data:
Max pressure: up to 10 bar (150 psi)
Temperature: -10°C up to +150°C
Surface finish: internal Ra ≤0.6µm external mirror polished
|
|
|
