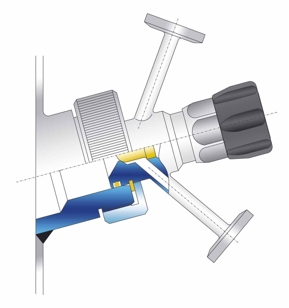

This TSVKIG INGOLD valve has been designed for sterile sampling from any type of vessel;
mounted on an INGOLD the special configuration assures effective cleaning (CIP) and sterilization
(with saturated steam) of product contact surface of valve and the sealing plug with the valve in closed
position. Once installed; the sealing plug shuts off flush with the inlet port connection that guaranties
zero deadleg, and real representative sample of the product. Available with silicone or PTFE
membrane ideal for sampling fluid from reactor preparation or product tanks, where Ingold
DN25 with DIN G 11/4” are installed
|
Technical Data
Ingold connection with manual sample valve and with CIP / SIP port TC 1/2 ".
Outlet Connections: TC
Size:
DN25 with DIN G 11/4"
Max operating data:
Max. Operating Pressure: 10 barg (150 psi)
Max. Operating Temperature: -10°C up to +150°C
Surface finish: internal Ra ≤0.6µm external mirror polished
Valve Body: Stainless steel 316L
|
|
|
