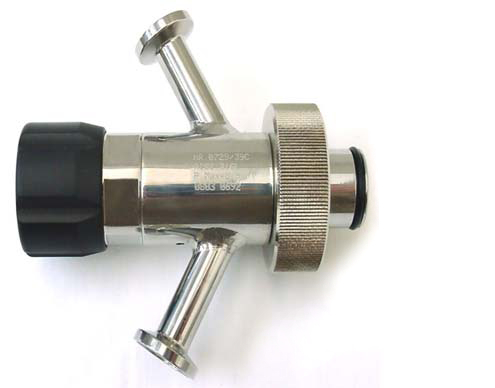

This valve has been designed for sterile sampling from any type of vessel; mounted on an
INGOLD the special configuration assures effective cleaning (CIP) and sterilization (with
saturated steam) of product contact surface of valve and the sealing plug with the valve in closed
position. Once installed; the sealing plug shuts off flush with the inlet port connection that
guaranties zero deadleg, and real representative sample of the product. The Ingold® sample
valve is a special version adapted to the φ25mm ports, typically used on bio-reactors and the
pharmaceutical and biotechnology industries, available with 30mm as standard length.
Additional lengths 40 and 52mm available on request.
|
Technical Data
Sample port / CIP-SIP port connections standard 1/2" clamp.
Max operating data:
Maximum working pressure: Depend of choice of valve head
Temperature range: Up to 130°C
Surface finish: internal Ra ≤0.6µm external mirror polished.
Valve body: stainless steel AISI 316L (1.4404)
Ring nut: Stainless steel AISI 304.
O-ring: In Viton as standard, EPDM or Silicone on request.
|
|
|
