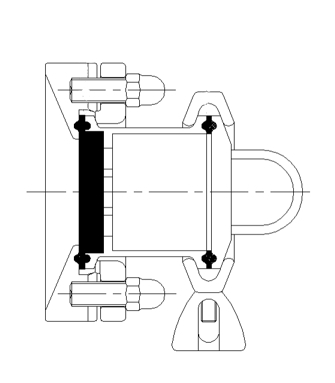

TKC- Syringe for clamp standard is designed according to BS 4825 Flush mount hygienic
device features a compact design that allow taking product samples from a tank or in-line in
pharmaceutical process. Before sampling, the port may be sterilized with alcohol, and then
sampling takes place by simply penetrating the special silicone membrane with a hypodermic
syringe. |
Technical Data
Size: 11/2” "
Surface finish: internal Ra ≤0.6µm external mirror polished
Max pressure sample liquid: 0.5 barg
Max sampling temperature: 95°C
Design temperature TKC holder: 200°C
Other sizes and connections are available upon request
Design pressure TK holder: 7 bar
Not recommended for vacuum applications
|
|
|
