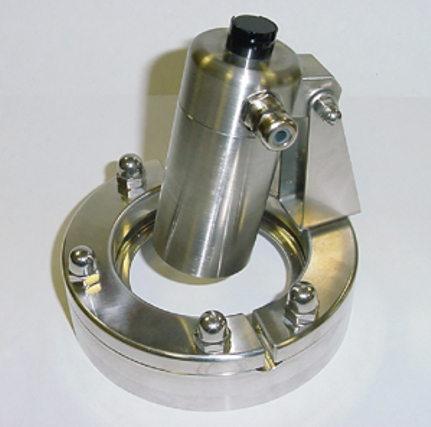

Powerful stainless steel LS2024 LED9 Luminaire can be mounted directly to any standard flanged
sight glass or TKC-Sight glass welded on vessel or pipeline and provides up to 20 watts of intense
glare free illumination through a safety glass lens. Extremely compact are ideally suited for use with
fittings for Aseptic processing. Primarily intended for the pharmaceutical and food processing
industries; ideal for lighting internals of small vessels such as bio-reactors, laboratory mixers, filters,
separators, stirred pressure vessels, miniature tanks, pipelines and other normally enclosed systems
in Non Ex hazardous area.
This Stainless Steel Luminaire is available in two versions:
1) with integral mounting clamp enabling it to be fitted onto a Tank Connection.
2) with hinged mounting bracket.
|
Technical Data
Power supply & Light
Supply voltage; 24V ac-60 mA
Output: 20 watts Power
cable: connection cable is excluded
Bulb life: over 2000 hours
Max operating data:
Ambient temperature: 90° C.
Surface finish: External mirror polish
|
|
|
