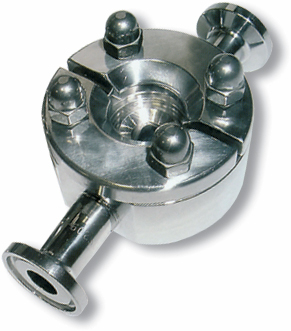

The TKCI is manufactured to ASTM A269 / 270 Standard this hygienic component may be
used with clamp ends or orbital welded onto a piping system in order to avoid deadleg associated
with installation of instrumentation. It may be also used in the installation and can be connected to
any TC Clamp equipment or sealed with a standard blind cap when not in use
|
Technical Data
Size range: 1/2" to 2"
Connections: TC BSOD
Max operating data:
Design Pressure: -1bar to 7 barg (-14,5 psi to 101,5 psi)
Design temperature: -80°C to 200°C (-112°F to 392°F)
Surface finish: internal Ra ≤0.6µm external mirror polished
|
|
|
