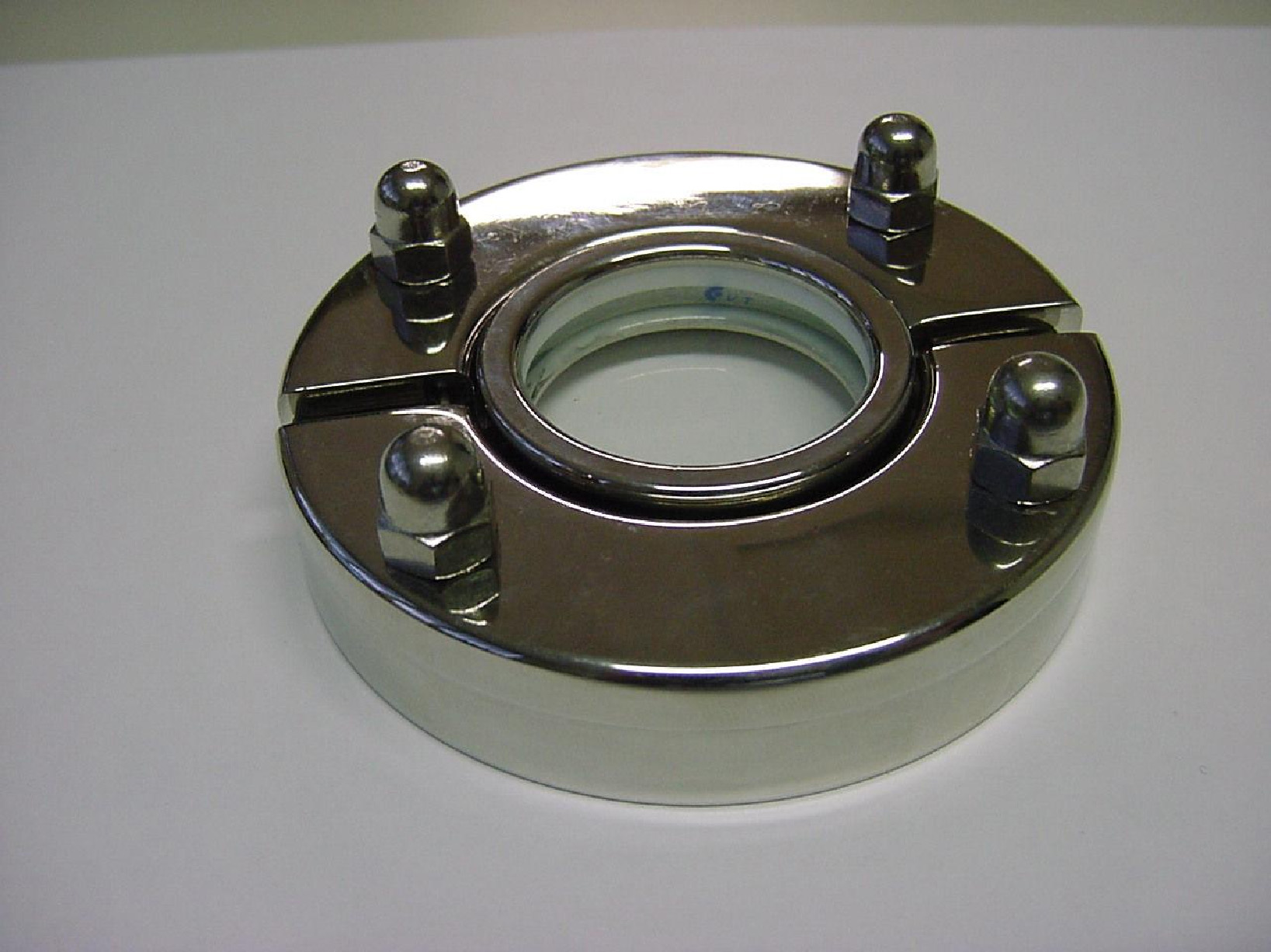

TK Sight Glas (TKCSG)



Observe your process closely by put a window in your process systems with the Sanitary TKC- SIGHT
GLASS, The Sight Glass is designed to fit onto the flush mounted TK-Connections that offers clear process
visibility

Advantages:

Fast and simple installation and maintenance
Extremely compact construction
Eliminate dead leg
No product entrapment
No air pockets during sterilization
Customized sizes available upon request




Technical Data


Size range:from 1'' to 4''

Max operating data:
Design Pressure: -1 bar to 7 barg (-14.5 psi to 101.5 psi)
Design Temperature: -80°C to 150°C (-112°F to 302°F)
Medium: Fluids group 1 and 2
Equipment category: I - IV
Surface finish: internal Ra ≤0.6µm
