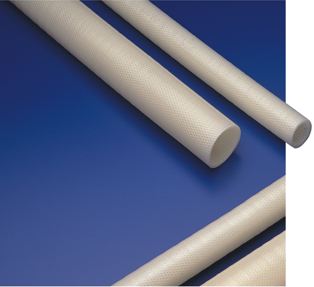

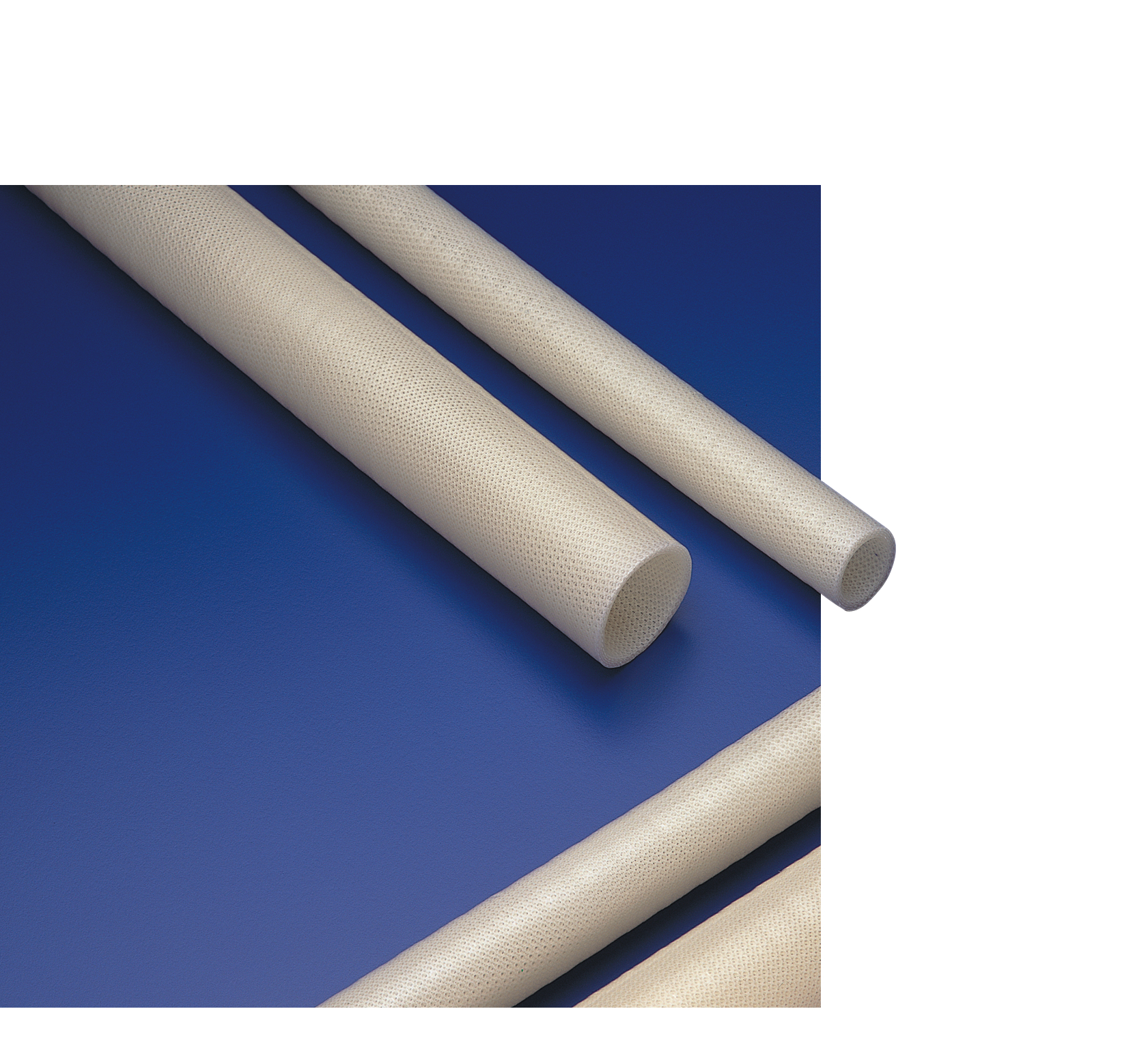

Flexible Platinum Cured Silicone Hose CSKS 640



VMQ silicone Hose (Vinyl Methyl Quality) in compliance with FDA 21 CFR 1772600 and
BGA Class XV, manufactured in silicone platinum cured in compliance with USP Class VI
(United State Pharmacopoeia) with four polyester reinforcements. For higher pressure,
we suggest a reinforced version with special polyester textile reference 640MIF

This Hose is not suitable for vacuum use.







Technical Data

Manufacturing Length: Length: Standard length is 4.00 meters
(on request, 6.00m length in some dimensions)

Dimensions in the following diameters: 6, 8, 10, 13, 16, 19, 20, 22, 25, 28, 32, 35, 38,
40, 42, 45, 50, 51, 63, 76, 90, 100, 102 mm

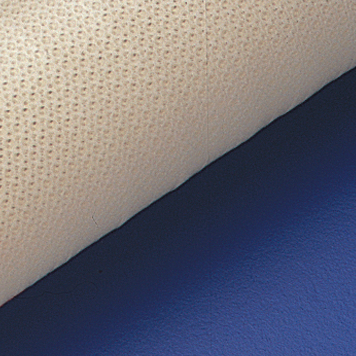

Reinforcement: Polyester

Temperature: The recommended working temperatures is between -60ºC and 200ºC(-76ºF & 356ºF)

Inner surface: Translucent and smooth..
Outer surface: Translucent, white or in color and smooth.
