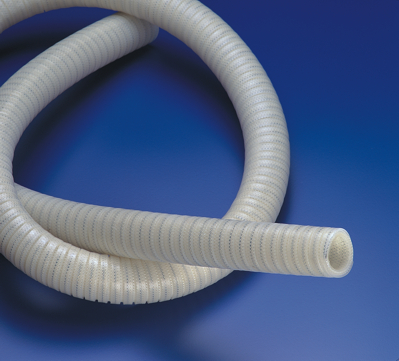

The CSKS670 offers an extremely broad field of application were high level of strength and
extreme flexibility is required , even in large diameters. It has been designed for use in specific
points with high dynamics and for a very frequent tube handling This design ensures a balance
between strength and lightness, making it easy to handle short lengths ideal for use in
proportioning and loading tanks. These Hose compensate vibrations and level differences.
Suitable for pressure or vacuum. These Hoses are usually translucent. However, in order to
distinguish the products conveyed through the Hose, they can also be manufactured so that the
outer of the Hose is as per the desired color
|
Technical Data
Manufacturing Length: Length: Standard length is 4.00 meters
(on request, 6.00m length in some dimensions)
Dimensions in the following diameters: 6, 8, 10, 13, 16, 19, 20, 22, 25, 28, 32,
35, 38, 40, 42, 45, 50, 51, 63, 76, 90, 100, 102 mm
Reinforcement: 4 Polyester layers & 302L Stainless Steel spiral
Temperature: The recommended working temperatures is between -60ºC and 200ºC(-76ºF & 356ºF)
Inner surface: Translucent and smooth..
Outer surface: Translucent, white or in color and smooth.
|
|
|
