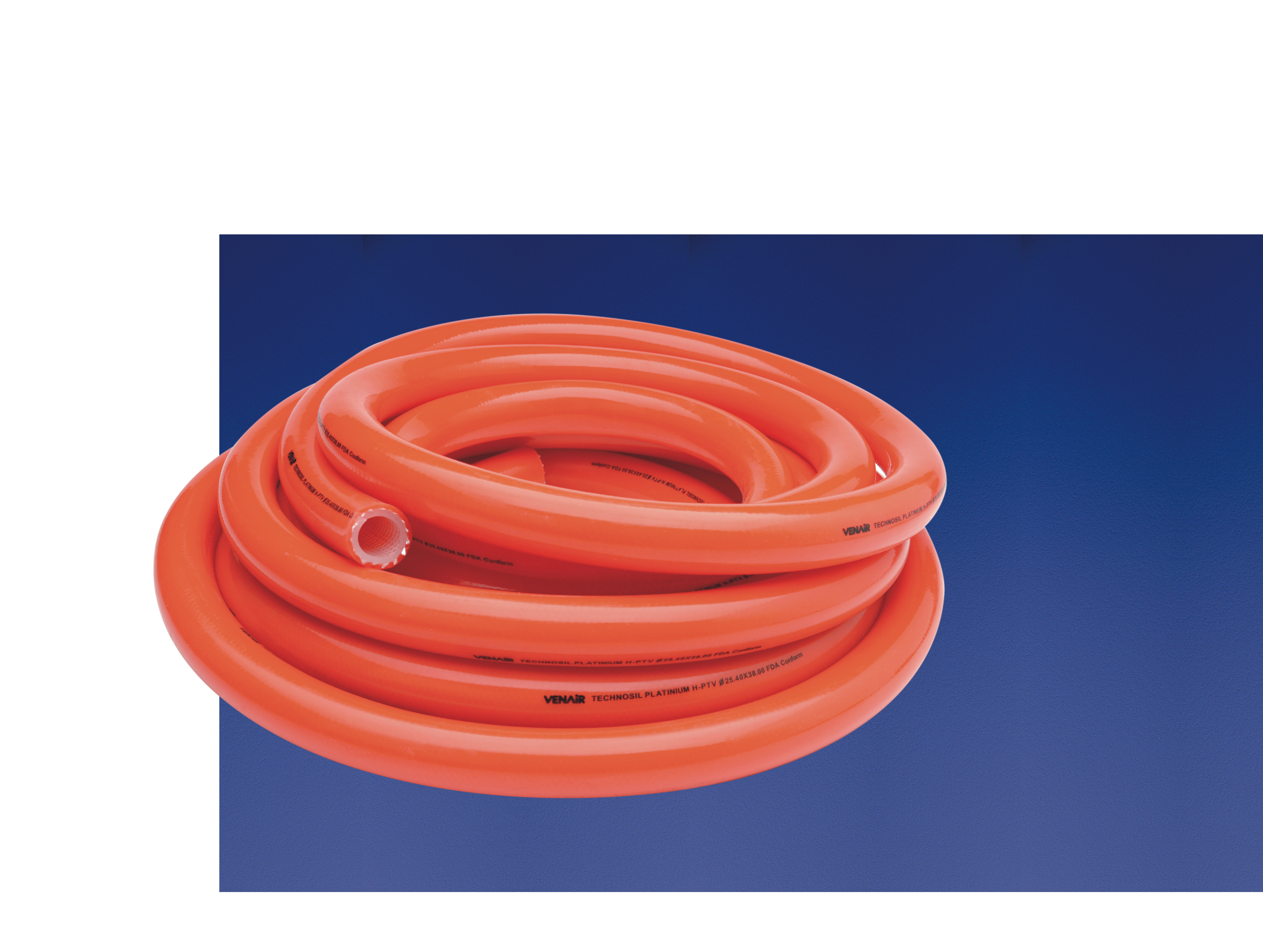

Flexible Platinum Cured Silicone Hose CSKS - TECHNOSIL H-PTV



High purity flexible silicone Hose platinum-cured manufactured by extrusion with glass fiber yarn
braiding that provides a high resistance to pressure and temperature. For carrying any kind of
liquid, especially for the Pharmaceutical & Biotech industries, at high temperatures and under
certain pressure.

Although it has not been specially designed for this purpose, due to its high resistance it can
work in void conditions.VMQ platinum silicone Hose (Vinyl Methyl Quality) in compliance with
FDA 21 CFR 1772600 and BGA Class XV, in compliance with USP Class VI (United State
Pharmacopoeia). This Hose may also be manufactured with NOMEX* fiber enabling
withstanding higher temperature. The inner layers made of translucent silicone and the outer of
orange silicone.








Technical Data

Manufacturing Length: Standard length is 10, 20, meters

Dimensions in the following diameters: 5, 6, 8, 10, 13, 16, 19, 25, 32 mm

Reinforcement: Polyester fiber or MONEX

Temperature: The recommended working temperatures is between -60ºC and 200ºC(-76ºF & 356ºF)

Inner surface: Translucent and smooth..
Outer surface: Translucent, ORANGE color and smooth.
