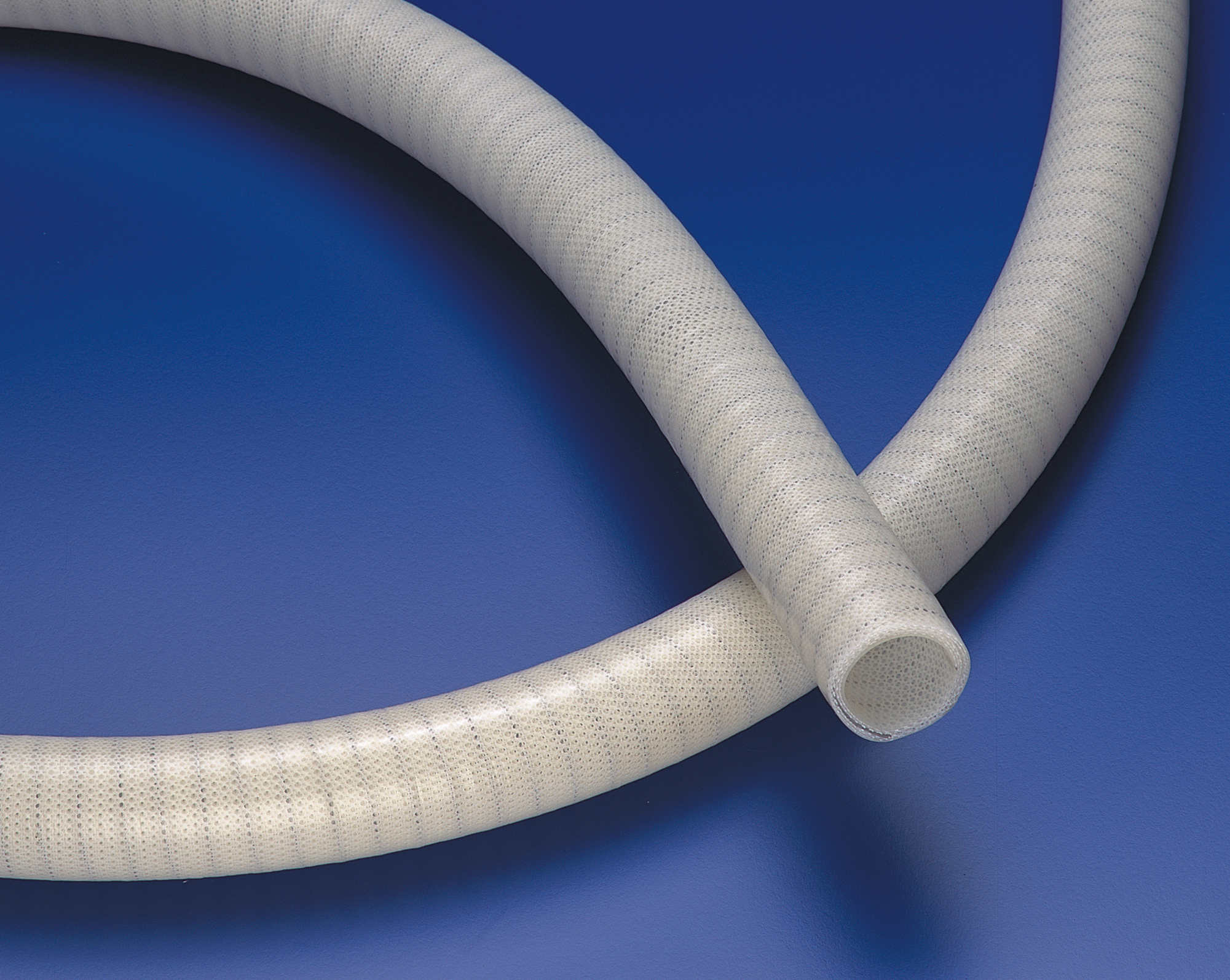

The CSKS650 offers an extremely broad field of applications. This design ensures a balance
between strength and lightness, making it easy to handle short lengths ideal for use in
proportioning and loading tanks. These Hose compensate vibrations and level differences. These
Hoses are suitable for pressure or vacuum, therefore this hose is recommended for use in many
applications.
These Hoses are usually translucent. However, in order to distinguish the products conveyed
through the Hose, they can also be manufactured so that the outer of the Hose is as per the
desired color.
|
Technical Data
Manufacturing Length:Standard length is 4.00 meters
(on request, 6.00m length in some dimensions)
Dimension in the following diameters: 6, 8, 10, 13, 16, 19, 20, 22, 25, 28, 32, 35,
38, 40, 42, 45, 50, 51, 63, 76, 90, 100, 102 mm
Reinforcement: Polyester & 302L Stainless Steel spiral.
Temperature: The recommended working temperatures is between -60ºC and 200ºC (-76ºF & 356ºF)
Inner surface: Translucent and smooth
Outer surface: Translucent, white or in color and smooth.
|
|
|
