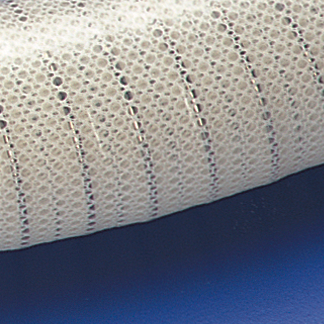

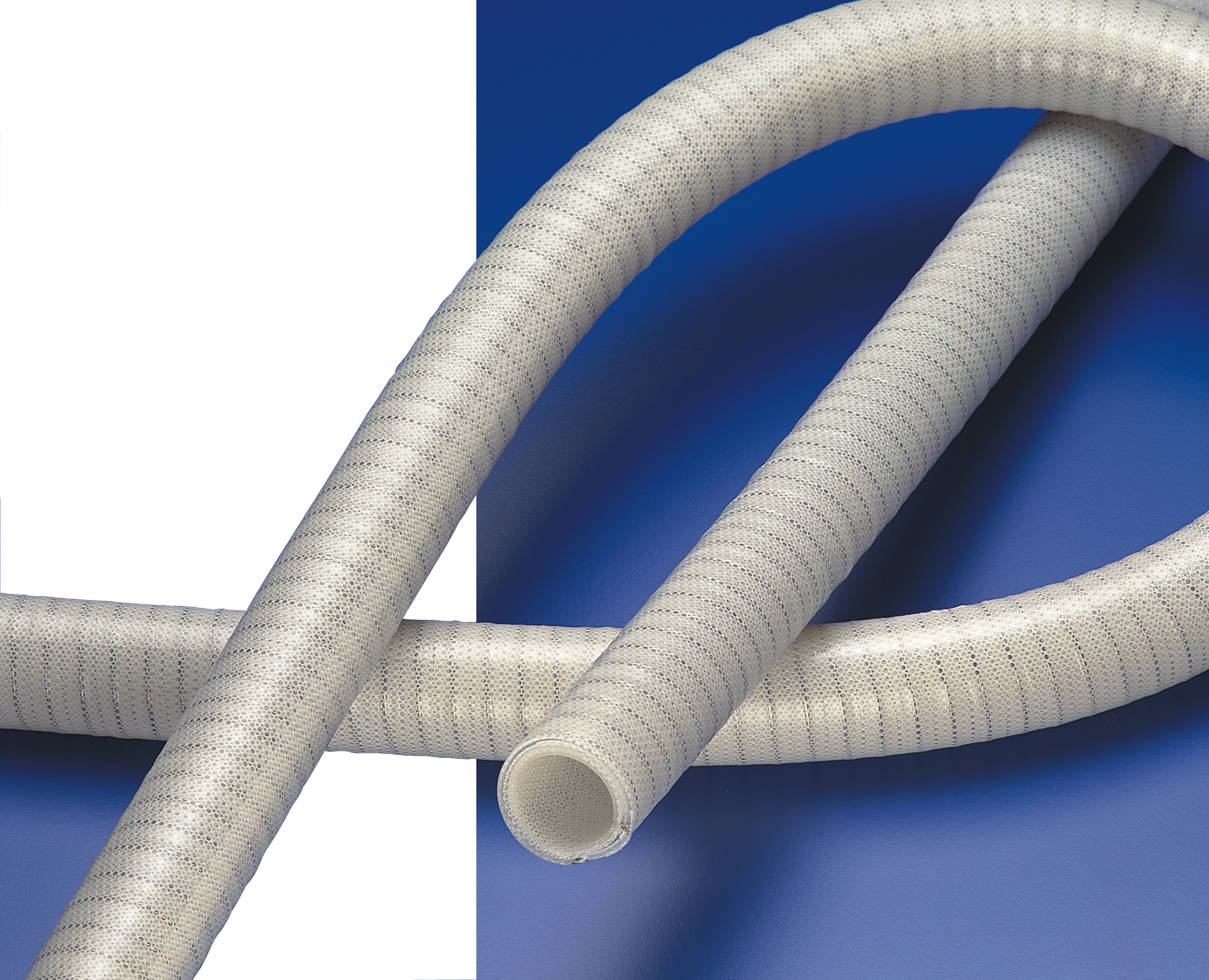

Flexible Platinum Cured Silicone Hose CSKS 655


The CSKS655 is the most resistant Hose of the range. This very strong and highly flexible Hose
is recommended for applications where mechanical shocks may be encountered. Ideal for use in
proportioning and loading tanks in any length. These Hose compensate vibrations and level
differences due to the double spiral inside, and are suitable for pressure or vacuum. The silicone
Hose is in compliance with FDA 21 CFR 1772600 and BGA Class XV, in compliance with
USP Class VI (United State Pharmacopoeia) with four polyester reinforcements and two
covered spirals inside the Hose.






Technical Data


Manufacturing Length: Standard length is 4.00 meters
(on request, 6.00m length in some dimensions)

Dimensions in the following diameters: 6, 8, 10, 13, 16, 19, 20, 22, 25, 28, 32,
35, 38, 40, 42, 45, 50, 51, 63, 76, 90, 100, 102 mm

Temperature: The recommended working temperatures is between -60ºC and 200ºC (-76ºF & 356ºF)

Reinforcement: 4 Polyester layers& and double 302L S.S. spiral
Outer surface: Translucent, white or in color and smooth.
