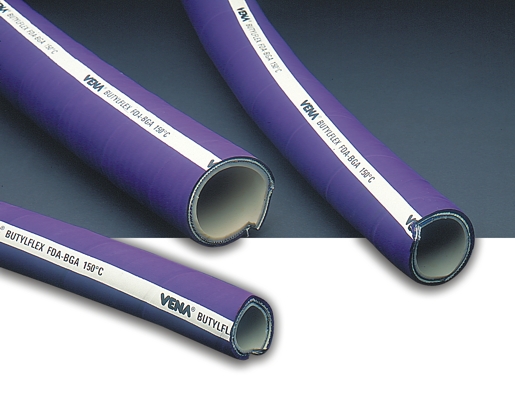

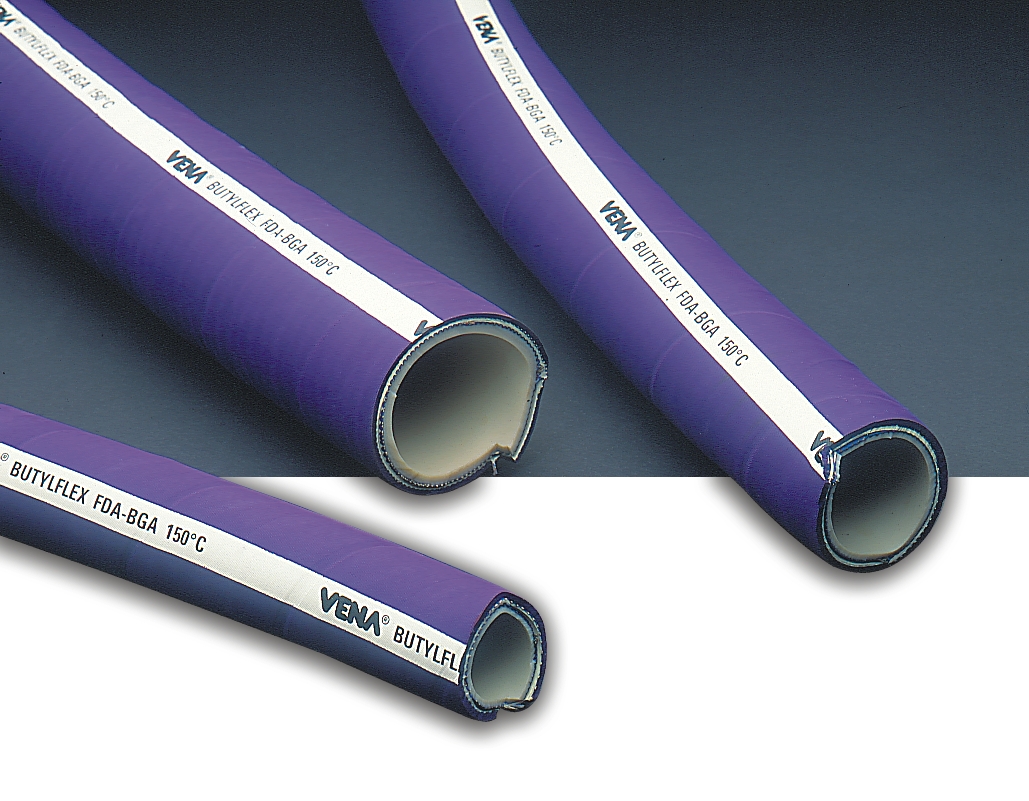

Flexible Hose CSKS BUTYLFLEX



The CSKS BUTYLFLEX, is manufactured from food grade Butyl in accordance with
FDA 21 CFR 1772600 and BGA Class XV standards is suitable for the support of all food
products, also at high temperatures (milk, chocolate, drinking water, fruit juices, cream, oil,
cosmetics-cream, Alcohol etc. ...). Equipped reinforced inside the wall of the hose, with textile
and 304L double stainless steel spiral and copper braiding to ensure a potential joint with the
metal fittings, to protect from discharges of static electricity.

CSKS BUTYLFLEX can be sterilised on-site by the major Cleaning in Place (CIP) products.
CSKS BUTYLFLEX can operate in pressure or vacuum.







Technical Data

Manufacturing Length: Maximum length 40m

Dimensions in the following diameters: 25, 32, 38, 51, 63, 76, 102 mm

Hose with strong and durable construction during operation as well as when there is a friction against the floor.

Inner surface: Smooth.
Outer surface: Violet.


Can be sterilized on-site by the major Cleaning in Place (CIP) products.
Can operate with pressure or vacuum.
